NSX-T Data Center EDGE does not start correctly

Issue

After some failover attempts performed on the EDGEs, following some laboratory tests, I found myself in the situation where the EDGE is no longer able to boot properly due to file system problems.

Failed to start File System Check on /dev/mapper/nsx-var+dump.
See 'systemctl status "systemd-fsck@dev\\x2dvar\\x2bdump.service"' for details.

Solution

Disclaimer: Procedures described below may not be officially supported by VMware. Use it at your own risk. Before to perform any action described be sure that you have a valid backup. The best way is to open a Service Request to the VMware GSS.

We performed the command below as suggested, then ...

systemctl status "systemd-fsck@dev\\x2dvar\\x2bdump.service"

.. we performed check of the file system ...

fsck -y /dev/mapper/nsx-var+dump

reboot

After the reboot, the Edge has started normally.

That's it.

If service is unavailable .... put into maintenance mode the EDGE..

Issue

I was recently asked to create a script, for monitoring by ping a specific service/IP .... and in the event of a fault for three consecutive times to take actions on NSX-T.
In my case, the action to be taken in NSX-T was to put a specific EDGE into maintenance.

Solution

First of all, what we want to realize is a bash script to run on a linux machine ... but, we also need to find out how to retrieve the NSX-T information we need via the REST API.
Let's start finding out how to retrieve information we need from the NSX-T Data Center REST API web site.
Having a linux environment available, my REST API calls will be executed using the curl command. Most API calls require authentication. NSX-T Data Center API supports several different authentication schemes, which are documented in link above. Multiple authentication schemes may not be used concurrently.

For our purpose is enough to use the Basic encoded Authentication. To do this, we modify the following call:

curl -k -u 'admin:VMware1!VMware1!' https://<nsx-mgr>/api/v1/logical-ports

in the

curl -k -H "Authorization: Basic YWRtaW46Vk13YXJlMSFWTXdhcmUxIQ==" https://<nsx-mgr>/api/v1/logical-ports

To encode the string 'admin:VMware1!VMware1!' it's enough execute, on a linux machine the command

echo -n 'admin:VMware1!VMware1!' | base64

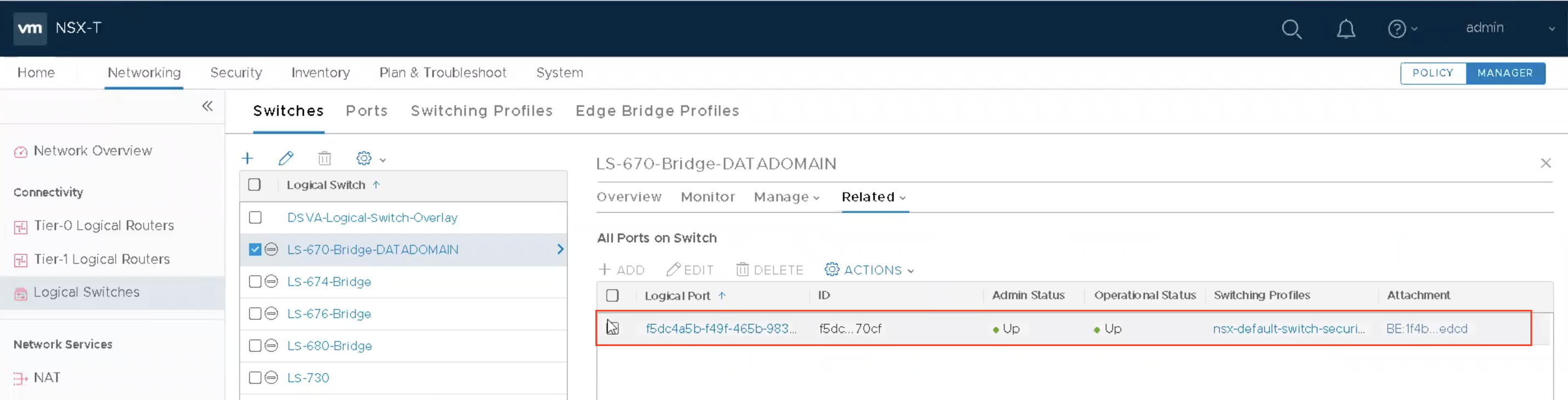

Now, we need to retrieve the proper information regarding the EDGE (in my case "edge01a") we want to collect; executing the following command:

curl -k -H "Authorization: Basic YWRtaW46Vk13YXJlMSFWTXdhcmUxIQ==" https://<nsx-mgr>/api/v1/transport-nodes

From the outcome let's look for the display name row with the edge name (in my case edge01a as shown below) and take note of the identifier "id" indicated in the line above ("id": "32340c58-6f28-412c-9f75-c455f8d11323").

If we run the modified command as below, we get detailed information about the edge.

curl -k -H "Authorization: Basic YWRtaW46Vk13YXJlMSFWTXdhcmUxIQ==" https://<nsx-mgr>/api/v1/transport-nodes/32340c58-6f28-412c-9f75-c455f8d11323

Now we have collected all the information we need we can create the bash script as the following

#!/bin/bash
#
# Author: Lorenzo Moglie (ver.1.0 28.05.2021)
#
# IP = Active Service/IP that we want monitoring by pinging every $sleeptime (in seconds).
#      After 3 unsuccessful attempts it performs (in our case) the failover forcing the maintenance of the EDGE (edge01a)
# sleeptime = can be set (below), time between one ping and the next by default is 1
# NSX = NSX-T Manager on which we want to launch the command
# WARNING : NSX-T Parameters to use in Basic Authorization according to your own needs, in my case:
#           Username = admin
#           Password = Vmware1!VMware1!
#           EDGE ID must be found earlier in my case 32340c58-6f28-412c-9f75-c455f8d11323
#

IP='<IP>'
sleeptime=1
NSX='<nsx-mgr>'

NPing=0
while true; do
 if [ "$NPing" -eq 3 ]
 then
   NPing=0
   curl -k -X POST -H "Authorization: Basic YWRtaW46Vk13YXJlMSFWTXdhcmUxIQ=="  https://$NSX/api/v1/transport-nodes/32340c58-6f28-412c-9f75-c455f8d11323?action=enter_maintenance_mode
 else
 fi
 ping -c1 $IP 2>/dev/null 1>/dev/null
 if [ "$?" = 0 ]
 then
  NPing=0
  echo "OK"
 else
  echo "Failure $NPing"
  NPing=`expr $NPing + 1`
 fi
 sleep $sleeptime
done

let's see how the script it works below...... as soon as the IP become unreachable .... after three failed attempts.. send the command to put into maintenance mode the edge.

That's it.

How to set by script a new unique UUID.bios

Issue

A colleague of mine asked me help with creating a powershell script, to change the UUID.bios value in the .vmx file due to a problem related to VMs restored from backups with the same UUID. The issue is related to the fact that both VMs (source and recovered) with the same UUID.bios are present on the execution environment at the same time.

Solution

Googling around I found an old thread on the VMNT community answered by Luc Dekens.
There are several ways of doing in it, from manual to programmatic (as can be seen in this KB article)

I've chosen to write a PowerCLI script. So, I took the Luc's code (thanks for sharing with the community) and readjusted for my needs as described below.
The steps to follow are:

• shutdown the VM
• get the current UUID
• change the UUID (with one autogenerated)
• power on the VM

The new UUID is generated by a static prefix plus the date in the format Year, Month, Day, Hours, Minutes, Seconds, where first 2 digits are taken for all of them (example Get-Date -UFormat "%y%m%d%H%M%S").

############################################################################################
#
#  File  : Change-UUID.BIOS.ps1
#  Author: Lorenzo Moglie
#  Date  : 12.08.2021
#  Description : This script disconnect can be used for generate a new UUID for the target VM
#
#  Usage: .\Change-UUID.BIOS.ps1 <vm-name>
#
############################################################################################

if ($args[0].length -gt 0) {
 $vmName = $args[0]
} else {
 Write-Host -ForegroundColor red "Usage: .\Change-UUID.BIOS.ps1 <VM Name>"
 exit 40
}


Connect-VIServer -Server <VCENTER> -User <USERNAME> -Password <PASSWORD>

$vm = Get-VM -Name $vmName
#Write-Host OLD.UUID=$($vm.extensiondata.config.uuid)

if ((Get-VM -Name $vmName).PowerState -eq "PoweredOff") {
  Write-Host -foreground Green "- VM"$vmName "is already OFF"
}
else
{
    Write-Host -foreground Red "- VM"$vmName "is shutting down ..."
    $vm | Shutdown-VMGuest  -Confirm:$false
    While ((Get-VM -Name $vmName).PowerState -ne "PoweredOff") {
        Write-Host -foreground yellow "... waiting for" $vmName "to power off"
    sleep 5
    }
}

$newUuid = "6d6f676c-6965-6c31-2e30-" + $(Get-Date -UFormat "%y%m%d%H%M%S")

$spec = New-Object VMware.Vim.VirtualMachineConfigSpec
$spec.uuid = $newUuid
$vm.Extensiondata.ReconfigVM_Task($spec)

Write-Host -foreground Green "- VM"$vmName "successfully updated."
Write-Host "OLD.UUID="$($vm.extensiondata.config.uuid)
Write-Host "NEW.UUID="$newUuid

Write-Host -foreground Green "- VM"$vmName": Restarting in progress ...."
Start-VM -VM $vm -RunAsync

Disconnect-VIServer -Server * -Force -Confirm:$false

let's see below how the outcome looks like ...

a double check.

UUID.BIOS changed ... Everything look fine.

That's it.

NSX-T 3.1 - vCenter already registered

Issue

Recently in LAB it happened that I had to reuse a environment previously cloned. When on the new NSX-T 3.1.2.1 I tried to add the vCenter (cloned) into the "Compute Manager" I have been warned with the following message:

Compute Manager <vCenter_IP> is already registered with other NSX Manager <NSX_Manager_IP>

Solution

To add the vCenter at the new NSX-T Manager is enough select the error message and click on RESOLVE ...

... Close the warning message ...

... re-insert the Username and Password of the vCenter and click RESOLVE...

... and the vCenter will become successfully registered.

That's it.

ssh_init: Network error: Cannot assign requested address

Issue

I needed to upload some files on a VM Photon OS version 3.0 using pscp.exe tool, from Windows machine.

But i obtain the following error message ...

ssh_init: Network error: Cannot assign requested adress

Solution

In my case the solution was to specify the port with -P 22 option as shown in the picture below

That's it.

Elasticsearch on Workspace One Access (former vIDM) start and exit with status 7

Issue

This week I had problem with elasticsearch service on Workspace ONE Access (former VIDM) part of the new VMware Cloud Foundation environment (VCF Version 4.X). It seems that the service has some problem in the startup phase on all the nodes that compose the cluster. 'elasticsearch start' exits with status 7.
Workspace One Access version is 3.3.2-15951611.

Opening the console was present an Error message like “Error: Error log is in /var/log/boot.msg.”
Part of the message are reported below:

 No JSON object could be decoded
Traceback (most recent call last):
  File "<string>", line 1, in <module>
  File "/usr/lib64/python2.6/json/__init__.py", line 267, in load
    parse_constant=parse_constant, **kw)
  File "/usr/lib64/python2.6/json/__init__.py", line 307, in loads
    return _default_decoder.decode(s)
  File "/usr/lib64/python2.6/json/decoder.py", line 319, in decode
    obj, end = self.raw_decode(s, idx=_w(s, 0).end())
  File "/usr/lib64/python2.6/json/decoder.py", line 338, in raw_decode
    raise ValueError("No JSON object could be decoded")
ValueError: No JSON object could be decoded
Number of nodes in cluster is :
Configuring /opt/vmware/elasticsearch/config/elasticsearch.yml file
Starting elasticsearch:
<notice -- Feb 15 15:05:17.122319000> 'elasticsearch start' exits with status 7
<notice -- Feb 15 15:05:17.130417000> hzn-dots start
Application Server already running.
<notice -- Feb 15 15:05:17.339108000> 'hzn-dots start' exits with status 0
Master Resource Control: runlevel 3 has been reached
Failed services in runlevel 3: elasticsearch
Skipped services in runlevel 3: splash
<notice -- Feb 15 15:05:17.340630000>
killproc: kill(456,3)

Solution

Disclaimer: Procedures described below, if you are not fully aware of what you are changing, it is advisable to make the changes with the help of the VMware GSS to prevent the environment from becoming unstable. Use it at your own risk.

Short Answer
We just need to run the following commands on each Workspace ONE Access appliance, to understand if nodes communicates each other, and so on..

• Check how many nodes are part of the cluster:


  curl -s -XGET http://localhost:9200/_cat/nodes

• Check cluster health:


  curl http://localhost:9200/_cluster/health?pretty=true

• Check the queue list of rabbitmq

  rabbitmqctl list_queues | grep analytics

• If the cluster health is red run these commands:
  • to find UNASSIGNED SHARDS:


    curl -XGET localhost:9200/_cat/shards?h=index,shard,prirep,state,unassigned.reason | grep UNASSIGNED

  • to DELETE SHARDS:


    curl -XGET http://localhost:9200/_cat/shards | grep UNASSIGNED | awk {'print $1'} | xargs -i curl -XDELETE "http://localhost:9200/{}"

• Recheck the health to insure it is green and once green ....

  curl http://localhost:9200/_cluster/health?pretty=true

• ... then check the elastic search if it is working or not.


• Nodes may need to be restarted. Proceed as follows:
  • turn off 2 nodes and leave one active

  • turn on a node again (at time), wait for it to appear in the cluster and start correctly

  • do the same with the third node

  • When the third is active and present in the cluster, perform a clean restart cycle also for the first node.


Long Answer (with command's output)
The commands that we will perform into the long answer will be the same already explained above, but we will report down here the output (of one node only). We remember that the commands must be performed on each nodes part of the cluster.

• Check how many nodes are part of the cluster:


  custm-vrsidm1:~ # curl -s -XGET http://localhost:9200/_cat/nodes
  10.174.28.18 10.174.28.18 6 98 0.31 d * Exploding Man

• Check cluster health:


  custm-vrsidm1:~ # curl http://localhost:9200/_cluster/health?pretty=true
  {
    "cluster_name" : "horizon",
    "status" : "red",
    "timed_out" : false,
    "number_of_nodes" : 1,
    "number_of_data_nodes" : 1,
    "active_primary_shards" : 74,
    "active_shards" : 74,
    "relocating_shards" : 0,
    "initializing_shards" : 0,
    "unassigned_shards" : 146,
    "delayed_unassigned_shards" : 0,
    "number_of_pending_tasks" : 0,
    "number_of_in_flight_fetch" : 0,
    "task_max_waiting_in_queue_millis" : 0,
    "active_shards_percent_as_number" : 33.63636363636363
  }

• Check the queue list of rabbitmq

  custm-vrsidm1:~ #  rabbitmqctl list_queues | grep analytics
  -.analytics.127.0.0.1   0

• If the cluster health is red run these commands:
  • to find UNASSIGNED SHARDS:


    custm-vrsidm1:~ # curl -XGET localhost:9200/_cat/shards?h=index,shard,prirep,state,unassigned.reason| grep UNASSIGNED
      % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                     Dload  Upload   Total   Spent    Left  Speed
    100 11440  100 11440    0     0   270k      0 --:--:-- --:--:-- --:--:--  279k
    v4_2021-02-14     4 r UNASSIGNED CLUSTER_RECOVERED
    v4_2021-02-14     1 r UNASSIGNED CLUSTER_RECOVERED
    v4_2021-02-14     2 p UNASSIGNED CLUSTER_RECOVERED
    v4_2021-02-14     2 r UNASSIGNED CLUSTER_RECOVERED
    v4_2021-02-14     3 r UNASSIGNED CLUSTER_RECOVERED
    v4_2021-02-14     0 r UNASSIGNED CLUSTER_RECOVERED
    v4_2021-02-03     4 p UNASSIGNED CLUSTER_RECOVERED
    v4_2021-02-03     4 r UNASSIGNED CLUSTER_RECOVERED
    v4_2021-02-03     3 p UNASSIGNED CLUSTER_RECOVERED
    v4_2021-02-03     3 r UNASSIGNED CLUSTER_RECOVERED
    v4_2021-01-28     4 r UNASSIGNED CLUSTER_RECOVERED
    v4_2021-01-28     3 r UNASSIGNED CLUSTER_RECOVERED
    v4_2021-01-28     2 r UNASSIGNED CLUSTER_RECOVERED
    v4_2021-01-28     1 r UNASSIGNED CLUSTER_RECOVERED
    v4_2021-01-28     0 r UNASSIGNED CLUSTER_RECOVERED
    v2_searchentities 4 p UNASSIGNED CLUSTER_RECOVERED
    v2_searchentities 4 r UNASSIGNED CLUSTER_RECOVERED
    v2_searchentities 1 r UNASSIGNED CLUSTER_RECOVERED
    v2_searchentities 2 r UNASSIGNED CLUSTER_RECOVERED
    v2_searchentities 3 r UNASSIGNED CLUSTER_RECOVERED
    v2_searchentities 0 r UNASSIGNED CLUSTER_RECOVERED
    v4_2021-02-06     4 p UNASSIGNED CLUSTER_RECOVERED
    v4_2021-02-06     4 r UNASSIGNED CLUSTER_RECOVERED
    v4_2021-01-27     0 r UNASSIGNED CLUSTER_RECOVERED
    v4_2021-02-05     4 p UNASSIGNED CLUSTER_RECOVERED
    v4_2021-02-05     4 r UNASSIGNED CLUSTER_RECOVERED
    .................................................
    v4_2021-02-05     2 r UNASSIGNED CLUSTER_RECOVERED
    v4_2021-02-05     1 r UNASSIGNED CLUSTER_RECOVERED
    v4_2021-02-05     0 r UNASSIGNED CLUSTER_RECOVERED
    v4_2021-01-26     4 p UNASSIGNED CLUSTER_RECOVERED
    v4_2021-01-26     4 r UNASSIGNED CLUSTER_RECOVERED
    v4_2021-02-04     1 r UNASSIGNED CLUSTER_RECOVERED
    v4_2021-02-04     0 r UNASSIGNED CLUSTER_RECOVERED

  • to DELETE SHARDS:


    custm-vrsidm1:~ # curl -XGET http://localhost:9200/_cat/shards | grep UNASSIGNED | awk {'print $1'} | xargs -i curl -XDELETE "http://localhost:9200/{}"
      % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                     Dload  Upload   Total   Spent    Left  Speed
    100 16060  100 16060    0     0   589k      0 --:--:-- --:--:-- --:--:--  627k
    {"acknowledged":true}{"error":{"root_cause":[{"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v4_2021-02-14","index":"v4_2021-02-14"}],"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v4_2021-02-14","index":"v4_2021-02-14"},"status":404}{"error":{"root_cause":[{"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v4_2021-02-14","index":"v4_2021-02-14"}],"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v4_2021-02-14","index":"v4_2021-02-14"},"status":404}{"error":{"root_cause":[{"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v4_2021-02-14","index":"v4_2021-02-14"}],"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v4_2021-02-14","index":"v4_2021-02-14"},"status":404}{"error":{"root_cause":[{"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v4_2021-02-14","index":"v4_2021-02-14"}],"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v4_2021-02-14","index":"v4_2021-02-14"},"status":404}{"error":{"root_cause":[{"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v4_2021-02-14","index":"v4_2021-02-14"}],"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v4_2021-02-14","index":"v4_2021-02-14"},"status":404}{"acknowledged":true}{"error":{"root_cause":[{"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v4_2021-02-03","index":"v4_2021-02-03"}],"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v4_2021-02-03","index":"v4_2021-02-03"},"status":404}
    ..........................................................
    {"error":{"root_cause":[{"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v4_2021-01-28","index":"v4_2021-01-28"}],"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v4_2021-01-28","index":"v4_2021-01-28"},"status":404}{"acknowledged":true}{"error":{"root_cause":[{"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v2_searchentities","index":"v2_searchentities"}],"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v2_searchentities","index":"v2_searchentities"},"status":404}{"error":{"root_cause":[{"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v2_searchentities","index":"v2_searchentities"}],"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v2_searchentities","index":"v2_searchentities"},"status":404}{"error":{"root_cause":[{"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v2_searchentities","index":"v2_searchentities"}],"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v2_searchentities","index":"v2_searchentities"},"status":404}{"error":{"root_cause":[{"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v2_searchentities","index":"v2_searchentities"}],"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v2_searchentities","index":"v2_searchentities"},"status":404}{"error":{"root_cause":[{"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v2_searchentities","index":"v2_searchentities"}],"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v2_searchentities","index":"v2_searchentities"},"status":404}{"acknowledged":true}{"error":{"root_cause":[{"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v4_2021-02-06","index":"v4_2021-02-06"}],"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v4_2021-02-06","index":"v4_2021-02-06"},"status":404}{"error":{"root_cause":[{"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v4_2021-02-06","index":"v4_2021-02-06"}],"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v4_2021-02-06","index":"v4_2021-02-06"},"status":404}{"error":{"root_cause":[{"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v4_2021-02-06","index":"v4_2021-02-06"}],"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v4_2021-02-06","index":"v4_2021-02-06"},"status":404}{"error":{"root_cause":[{"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v4_2021-02-04","index":"v4_2021-02-04"}],"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v4_2021-02-04","index":"v4_2021-02-04"},"status":404}{"error":{"root_cause":[{"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v4_2021-02-04","index":"v4_2021-02-04"}],"type":"index_not_found_exception","reason":"no such index","resource.type":"index_or_alias","resource.id":"v4_2021-02-04","index":"v4_2021-02-04"},"status":404}

• Recheck the health to insure it is green and once green ....

  custm-vrsidm1:~ # curl http://localhost:9200/_cluster/health?pretty=true
  {
    "cluster_name" : "horizon",
    "status" : "green",
    "timed_out" : false,
    "number_of_nodes" : 1,
    "number_of_data_nodes" : 1,
    "active_primary_shards" : 0,
    "active_shards" : 0,
    "relocating_shards" : 0,
    "initializing_shards" : 0,
    "unassigned_shards" : 0,
    "delayed_unassigned_shards" : 0,
    "number_of_pending_tasks" : 0,
    "number_of_in_flight_fetch" : 0,
    "task_max_waiting_in_queue_millis" : 0,
    "active_shards_percent_as_number" : 100.0
  }

• ... then check the elastic search if it is working or not.


• After the reboots of the all nodes. Number_of_nodes and number_of_data_nodes is now three (in my case) as should be .....

  custm-vrsidm1:~ # curl http://localhost:9200/_cluster/health?pretty=true
  {
    "cluster_name" : "horizon",
    "status" : "green",
    "timed_out" : false,
    "number_of_nodes" : 3,
    "number_of_data_nodes" : 3,
    "active_primary_shards" : 5,
    "active_shards" : 10,
    "relocating_shards" : 0,
    "initializing_shards" : 0,
    "unassigned_shards" : 0,
    "delayed_unassigned_shards" : 0,
    "number_of_pending_tasks" : 0,
    "number_of_in_flight_fetch" : 0,
    "task_max_waiting_in_queue_millis" : 0,
    "active_shards_percent_as_number" : 100.0
  }
  custm-vrsidm1:~ #
  custm-vrsidm1:~ #  curl -s -XGET http://localhost:9200/_cat/nodes
  10.174.28.19 10.174.28.19 14 97 0.20 d * Orka
  10.174.28.20 10.174.28.20  5 97 0.18 d m Mongoose
  10.174.28.18 10.174.28.18 11 96 0.47 d m Urthona

So, now VIDM seems to be up and running, if we check NSX-T's LB we can see that .....

... the pool is successfully contacting all nodes.
We are also, able to log into .....

... and check graphically that everything is ...

... FINE.

A double check can be done, verifying the file /var/log/boot.msg

<notice -- Feb 16 18:31:28.776900000>
elasticsearch start

horizon-workspace service is running
Waiting for IDM: ..........
<notice -- Feb 16 18:33:44.203450000> checkproc: /opt/likewise/sbin/lwsmd 1419
<notice -- Feb 16 18:33:44.530367000>
checkproc: /opt/likewise/sbin/lwsmd
1419

... Ok.
Number of nodes in cluster is : 3
Configuring /opt/vmware/elasticsearch/config/elasticsearch.yml file
Starting elasticsearch: done.
    elasticsearch logs: /opt/vmware/elasticsearch/logs
    elasticsearch data: /db/elasticsearch
<notice -- Feb 16 18:34:39.403558000>
'elasticsearch start' exits with status 0

That's it.

How to easily install VCSA from MacOS

Issue
Today I needed to install the new vCenter server 7.0u1. I downloaded the .iso (VMware-VCSA-all-7.0.1-17327517.iso) file from VMware, double click on the file, then I navigated inside and clicked the file Installer, present under the folder vcsa-ui-installer/mac/.

After that I faced the gatekeeper of the mac (Bug Sur 11.2). In order to proceed with the installation of it had to allow each step. Until, even if I was allowing it to continue, I was no longer able to proceed and the installation was stuck in here....

Solution
Googling around I found how to disable macOS gatekeeper only for a specific folder. I also found an article from William Lam on "How to exclude VCSA UI/CLI Installer from MacOS Catalina Security Gatekeeper"

However, for the installation I proceeded as follows ..

• I created a new folder namde VCSA (in my case).


• I copied/extracted all the files into the new VCSA folder ..






• Opened a new MacOS Terminal


• Moved into the proper folder, launch the command xattr as shown below in order to remove the metadata "com.apple.quarantine" for the extracted VCSA ISO files



  lorenzo@MacBook-Pro Downloads % sudo xattr -r -d com.apple.quarantine VCSA


• After the quarantine attribute has been removed, it is possible to run the VCSA UI Installer without being prompted with an error.



• However it could happen that the installation path is not correctly detected (as in the image below).



  Click on Browser and select the folder VCSA (in my case) the ones with the quarantine metadata removed.


• It is now possible, to continue with the installation and proceed over ...



  ....until the end.



That's it.

NSX-T 3.0 - While deleting Logical Segment, it got stuck in “Deletion in Progress” state and grayed out from UI.

Issue
Today, I have been called by a customer to solve a rather unusual problem. The process of deleting a Logical Segment on an NSX-T 3.0 infrastructure it got stucked in "Deletion in Progress" state for days and grayed out from UI without therefore to have the possibility to take any kind of action.

I tried to look for further information regarding the LS stuck

I tried to verify if by editing, in some way it was possible to undertake and/or force cancellation operations ...

I switched to Manager mode to have a different point of view ....
I noticed that there was a "Logical Port" that could block the deletion process ...

open, I tried to delete it, but here too the DELETE botton was grayed out ...

Then I decided to deep investigate inside the NSX-T Manager console in the following way as detailed below....

Disclaimer: Procedures described below may not be officially supported by VMware. Use it at your own risk. Before to perform any action described be sure that you have a valid backup. The best way is to open a Service Request to the support.


Solution
First of all I logged in via SSH to NSX-T Manager with the admin user and then raised the permissions to the root user level.

I moved into the directory "/var/log/policy" ...

root@NSXM-01:~# cd /var/log/policy/

Checked the policy.log log file for information about the switch to delete. In my case (verifying the dates) the information I was looking for were present in the .1.log.gz file ...

root@NSXM-01:/var/log/policy# zcat policy.1.log.gz | grep -i <LS NAME>

I therefore wanted to check the realized state. When you make a configuration change, NSX Manager typically sends a request to another component to implement the change. For some entities, if you make the configuration change using the API, you can track the status of the request to see if the change is successfully implemented.

The configuration change that you initiate is called the desired state. The result of implementing the change is called the realized state. If NSX Manager implements the change successfully, the realized state will be the same as the desired state. If there is an error, the realized state will not be the same as the desired state.

Below the command executed to check the Logical Segment in stuck and the output ...

root@NSXM-01:/var/log/policy# curl -k -u admin -X GET "https://localhost/policy/api/v1/infra/realized-state/realized-entities?intent_path=/infra/segments/LS-670-Bridge-DATADOMAIN"
Enter host password for user 'admin':
{
  "results" : [ {
    "extended_attributes" : [ {
      "data_type" : "STRING",
      "multivalue" : false,
      "values" : [ "/infra/tier-1s/T1-Gateway" ],
      "key" : "connectivity_path"
    }, {
      "data_type" : "STRING",
      "multivalue" : true,
      "key" : "l2vpn_paths"
    } ],
    "entity_type" : "RealizedLogicalSwitch",
    "intent_paths" : [ "/infra/segments/LS-670-Bridge-DATADOMAIN" ],
    "resource_type" : "GenericPolicyRealizedResource",
    "id" : "infra-LS-670-Bridge-DATADOMAIN-ls",
    "display_name" : "infra-LS-670-Bridge-DATADOMAIN-ls",
    "path" : "/infra/realized-state/enforcement-points/default/logical-switches/infra-LS-670-Bridge-DATADOMAIN-ls",
    "relative_path" : "infra-LS-670-Bridge-DATADOMAIN-ls",
    "parent_path" : "/infra/realized-state/enforcement-points/default",
    "unique_id" : "13fd4bf5-f067-4806-9317-93013928b0d0",
    "intent_reference" : [ "/infra/segments/LS-670-Bridge-DATADOMAIN" ],
    "realization_specific_identifier" : "11104acc-5aac-4e50-8689-c31492d455f4",
    "realization_api" : "/api/v1/logical-switches/11104acc-5aac-4e50-8689-c31492d455f4",
    "state" : "ERROR",
    "alarms" : [ {
      "message" : "Unable to delete logical port with attachments of LogicalPort LogicalPort/f5dc4a5b-f49f-465b-9832-86151b3670cf.",
      "source_reference" : "/infra/realized-state/enforcement-points/default/logical-switches/infra-LS-670-Bridge-DATADOMAIN-ls",
      "error_details" : {
        "error_code" : 8402,
        "module_name" : "NsxSwitching service",
        "error_message" : "Unable to delete logical port with attachments of LogicalPort LogicalPort/f5dc4a5b-f49f-465b-9832-86151b3670cf."
      },
      "resource_type" : "PolicyAlarmResource",
      "id" : "REST_API_FAILED",
      "display_name" : "a2759a0c-0c98-4e6b-abd0-c58ea326c5be",
      "relative_path" : "a2759a0c-0c98-4e6b-abd0-c58ea326c5be",
      "unique_id" : "fe05784c-3f69-4ca8-9a01-9df9e3750e8b",
      "_system_owned" : false,
      "_create_user" : "system",
      "_create_time" : 1611589503519,
      "_last_modified_user" : "system",
      "_last_modified_time" : 1611589503521,
      "_protection" : "NOT_PROTECTED",
      "_revision" : 0
    } ],
    "runtime_status" : "UNINITIALIZED",
    "_system_owned" : false,
    "_create_user" : "system",
    "_create_time" : 1610550767404,
    "_last_modified_user" : "system",
    "_last_modified_time" : 1611229785697,
    "_protection" : "NOT_PROTECTED",
    "_revision" : 42
  } ],
  "result_count" : 1
}
root@NSXM-01:/var/log/policy#

From the previous output it is evident that the Segment is in an ERROR state, because it is blocked by the logical ports which are still being attacked .....

"message" : "Unable to delete logical port with attachments of LogicalPort LogicalPort/f5dc4a5b-f49f-465b-9832-86151b3670cf."

Next step, is to attempt to delete the STALE Logical Port via UI. Owever, as we realized before is not possible to delete Logical Port via UI. The second option is to delete the logical port via API which fails too if you use vanilla Logical Port DELETE operation.
Before to delete it, I retrieve information about the Segment and perform NSX-T backup... in case they will be needed later....

root@NSXM-01:/var/log/policy# curl -k -u admin -X GET "https://localhost/api/v1/logical-ports/f5dc4a5b-f49f-465b-9832-86151b3670cf"
Enter host password for user 'admin':
{
  "logical_switch_id" : "11104acc-5aac-4e50-8689-c31492d455f4",
  "attachment" : {
    "attachment_type" : "BRIDGEENDPOINT",
    "id" : "1f4bd81c-83c6-43be-b690-a9aac5a6edcd"
  },
  "admin_state" : "UP",
  "address_bindings" : [ ],
  "switching_profile_ids" : [ {
    "key" : "SwitchSecuritySwitchingProfile",
    "value" : "47ffda0e-035f-4900-83e4-0a2086813ede"
  }, {
    "key" : "SpoofGuardSwitchingProfile",
    "value" : "fad98876-d7ff-11e4-b9d6-1681e6b88ec1"
  }, {
    "key" : "IpDiscoverySwitchingProfile",
    "value" : "64814784-7896-3901-9741-badeff705639"
  }, {
    "key" : "MacManagementSwitchingProfile",
    "value" : "1e7101c8-cfef-415a-9c8c-ce3d8dd078fb"
  }, {
    "key" : "PortMirroringSwitchingProfile",
    "value" : "93b4b7e8-f116-415d-a50c-3364611b5d09"
  }, {
    "key" : "QosSwitchingProfile",
    "value" : "f313290b-eba8-4262-bd93-fab5026e9495"
  } ],
  "ignore_address_bindings" : [ ],
  "internal_id" : "f5dc4a5b-f49f-465b-9832-86151b3670cf",
  "resource_type" : "LogicalPort",
  "id" : "f5dc4a5b-f49f-465b-9832-86151b3670cf",
  "display_name" : "f5dc4a5b-f49f-465b-9832-86151b3670cf",
  "_system_owned" : false,
  "_create_user" : "admin",
  "_create_time" : 1610731219571,
  "_last_modified_user" : "admin",
  "_last_modified_time" : 1610731219571,
  "_protection" : "NOT_PROTECTED",
  "_revision" : 0
}
root@NSXM-01:/var/log/policy#

We are now ready to perform forceful deletion of the Logical Port inside NSX-T database, in the following way ...

root@NSXM-01:/var/log/policy# curl -k -u admin -H "Accept:application/json" -H "Content-Type:application/json"  -X DELETE "https://localhost/api/v1/logical-ports/f5dc4a5b-f49f-465b-9832-86151b3670cf?detach=true"

Removed the blocking object, in our case the Logical Port, the deletion process of the Logical Segment was successfully completed by removing the Segment itself.

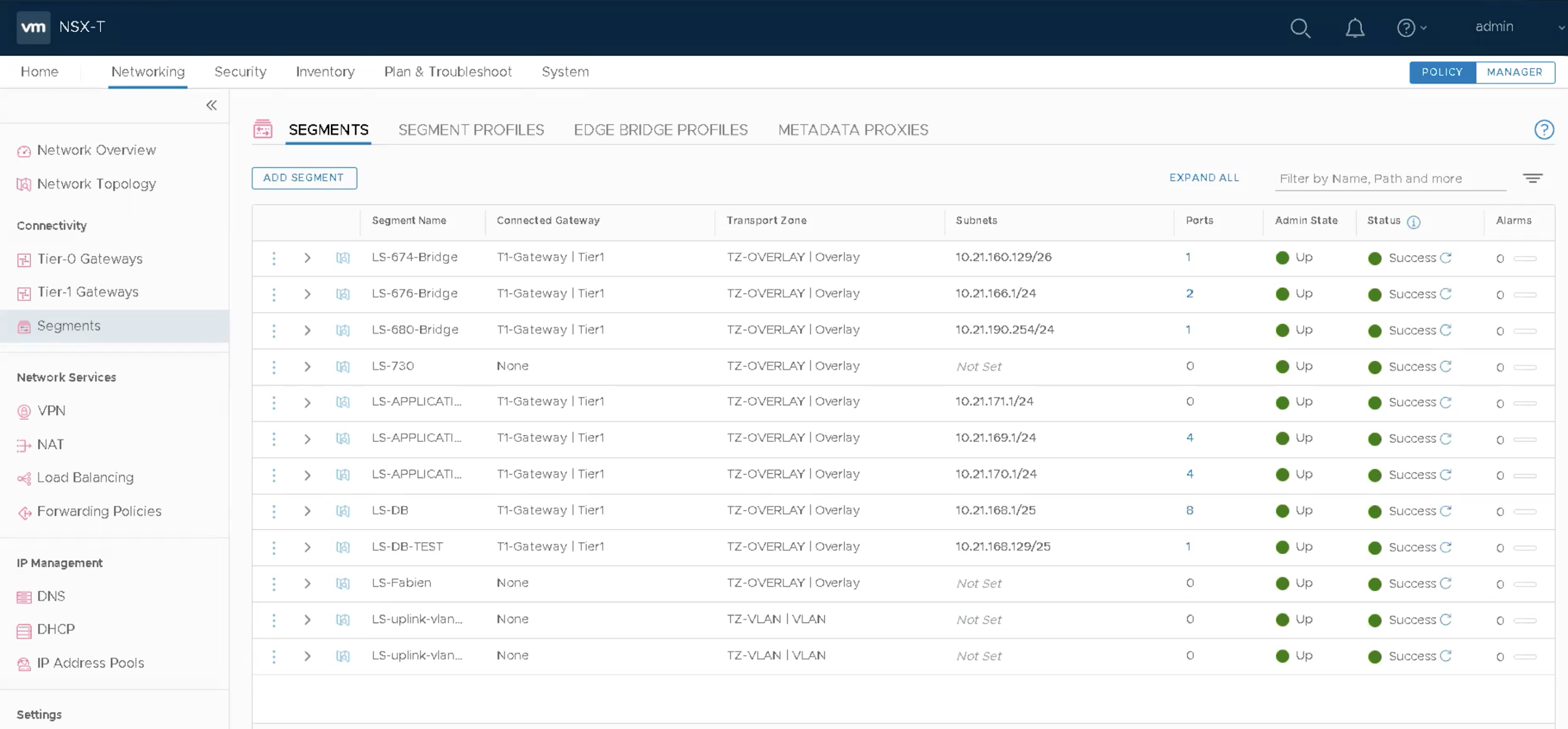

It takes a few moments for the deletion process to be completed ... after that, checking into Networking > Segments, the Logical Segment has gone.

That's it.

VMware NSX for vSphere 6.4.7 not more available to download

Issue
Today I found out, by performing a compatibility check between the various versions of ESXi and NSX to upgrade a customer's farm, that NSX 6.4.7 version due to a serious bug has been removed from download in favor of 6.4.8 (release notes).

" What's New in NSX Data Center for vSphere 6.4.8
VMware NSX for vSphere 6.4.8 resolves a specific issue identified in VMware NSX for vSphere 6.4.7, which could affect both new NSX customers as well as customers upgrading from previous versions of NSX. See Resolved Issues for more information. ”

As you can see from the images below, version 6.4.7 is no longer present from the download ....

... and from the interoperability matrix tables as well.

Solution
It is a good idea to upgrade VMware NSX Data Center for vsphere to version 6.4.8 at least.

That's it.
